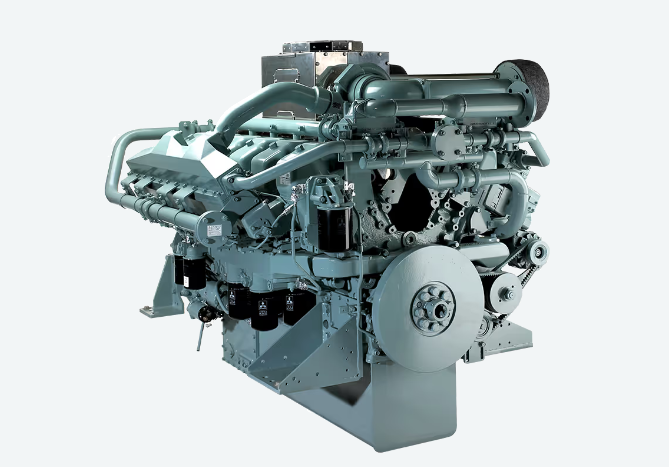

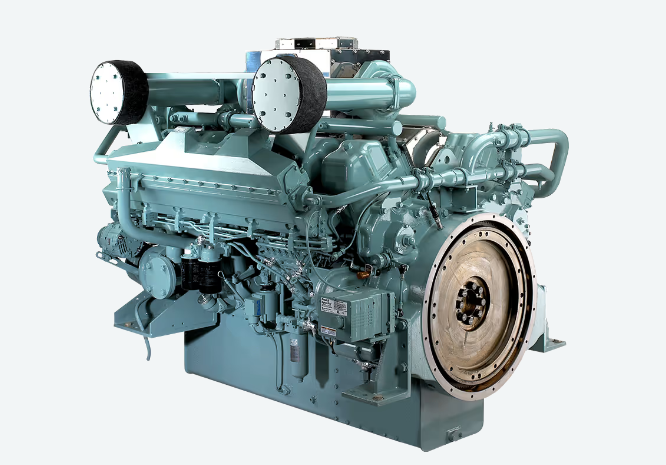

Mitsubishi S12A2 Series
S12A2 Series for Marine Applications – typically mounted in ferries, fishing and inland marine applications. Available as Marine Propulsion and Auxiliary.
Power House offer Mitsubishi marine engines with a wide output range from 221 kW to 3580 kW, suitable for propulsion, auxiliary, diesel-electric, and (harbour) emergency applications.
Specifications
- Brand
- Mitsubishi
- Engine type
- 4-stroke diesel, water-cooled, direct injection, turbocharger and air-cooler
- Cylinder configuration
- 12-cylinder
- Bore x stroke (mm)
- 150 x 160
- Total displacement (l)
- 33.93
- Dry weight (kg)
- 3380
- Compression Ratio
- 15.3:1
- Output (kW)
- 701 - 828
- Frequency (Hz)
- 50 / 60
Benefits
- Compact in size
- Economical fuel consumption
- Commonality of parts across all engine models, simplifies spare part management
More about the product
The engines in the S12A2 series are designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system – everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint.
Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels.
